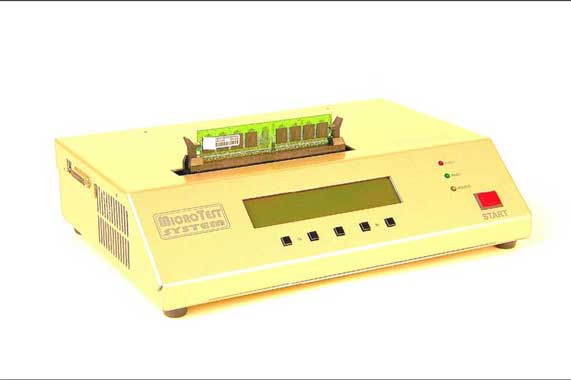

LS1000 DDR Leakage Tester

(download brochure)

Most DDR2 memory assembling requires expensive quality control equipment for detecting the BGA soldering joints. MicroTest System, Inc. provides you a new tool
LS1000 using traditional method to detect continuity of the assembled modules. This LS1000 can detect the leakage currents on the signal paths. Thus it is able to detect shorts and opens due to bad soldering works. Plus it exercises DDR2 functions and checks all memory cells at a slower speed. Moreover, it can program and/or verify the SPD information. All these features are what memory assembling needs. Why pay so much for something that can be replaced by low cost solution? Contact us now.

Features:

• Test both registered and unbuffered 240-pin DIMM modules
• 5-option buttons with functions indicated on display
• 1 heavy duty test start button
• LED indicating testing status
• USB-port interface with PC for configuration test options
• Handler interface port
• Yamaichi Burn-in socket with socket saver
• Backlit LCD display
• Auto Identifying Device under test
• Configurable test devices
• DC parametric testing
• Functional and cell exercise testing
• SPD program and verification

Adaptor Options:

• 200-pin DDR-II SODIMM adaptor
• 184-pin DDR-I DIMM adaptor
• IC's testing adaptor (x4, x8, x 16)


Specifications:

• Leakage measurement :
  • 4 Current Ranges (+/-40uA, 400uA, 4mA, 40mA)
  • Resolutions (80nA, 800nA, 8uA, 40uA)
  • Accuracy +/- 5%
• DUT Vcc range : 1.5-2.8 volts
• VTT tracks Vcc by ½
• SSTL 18 AND SSTL2 compliant
• Clock Speed : 133 MHz
• Data Speed : 266 MHz
• CAS Latency : 3/4/5 Clocks
• Trd & Trp : 3/4/5 Clocks
• Write Latency : 2/3 Clocks
• Internal Bank : 4/8 Banks
• Burst Length : 4/8
• ODT Selection : 75 Ohms/150 Ohms
• OCD Adjustment : Auto Calibration
• Posted CAS (AL) : 0/1/2/3/4 Clocks
• Refresh Cycle : Auto and Self Refresh
• Patterns:
  • Leakage test
  • Icc test
  • Adaptor Options
  • Open/Short Test (OST)
  • All-Cell-Function Test
• SPD Option : Program/Read/Verify - 255 Bytes
• Power Input : 110VAC / 240VAC switchable 50Hz/60Hz
• Operating Temp : 25 - 115 Degrees F
• Dimension : 16" x 11" x 4"
• Weight : 6 pounds
